Live Concert Production Setup

One of the Live Stage production setup.

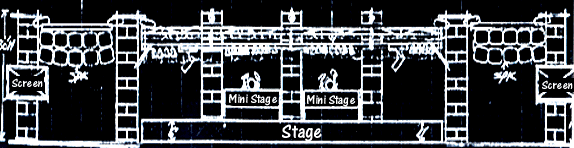

The Front View Of The Stage.

This is one of the bigger outdoor live concert production .
Here are the lighting and sound equipment List and costs we use for each concert .

All the cost includes
(Stage ground support truss)
Transportation
Lighting System
AV Equipment
Sound Equipment
Fireworks
Control And PA System
Special Effects
Musical Instrument
Stage w/ Backdrop

(A) Scarfolding Tower:(Stage ground support truss) 無台燈架 :

1. 6'x 6' x30' (H) Lighting Tower x 10
30 呎高鐵架
2. 6'x 6' x21' (H) Follow Spot and Control Panel Lighting Tower x 2
3. 500' Lighting Truss Frame x 1 w/Canvas Cover
無台燈架連防兩帳蓬
4. 1 Ton Hoist For Rigging x 12
電動吊重機
5. Rigging System x 1
吊重裝置及系統

(B) Lighting System: 舞台燈光 :

1. Par-64 x 200
1 千瓦射燈
2. Computer Moving Lite x 20
電腦燈
3. 2k Flood x 8
照明泛光╴P
4. 200A ELCB w/Distribution x 2
300kw 總電源分線器
5. 36 Ways Dimmer x 2
光暗硅箱
6. Avolite Pearl 2000 Lighting Console x 1
燈光總控台
7. Multi Core Cable x 2000m
多路電源線
8. F- 100 Smoke Machine x 4
煙霧機

(C) Sound Equipment:

Main FOH Sound And Delay Spk. ( 遠程音箱 )
1. Turbosound TMS-3 Loudspeaker x 20
2. Nexo Alpha Loudspeaker x 12
　Stage Monitor System: ( 返送音箱 )
1. Nexo PS15 Spk. x 10
2. Ramsa 300 Spk. x 10

Control And PA System: ( 設備及音統 )

1. Soundcraft 40 ch Mixing Console x 1
　 2. Mackie 24ch Monitor Mixing Console x2
　 3. Klark Tecnik / DOD 30 Band EQ x 12
　 4. Crown / QSC Power Amp x 40
　 5. DBX 160A Compressor/Limiter x 6
　 6. Yamaha SPX990 Multi Effector x 4
　 7. Shure Wireless Hand Held Mic x 8
　 8. Musical Instrument D1 Box/Mic x 30
　 9. Shure SM 58 Cable Mic w/Stand x 10
　 10. MD Player, CD Player , DAT Player x 6

OPTION: (A) AV Equipment:

1. 5x5 Vidiwall w/Control System (Manpower and Transportation) $10,000.00 U.S Dollars 　 2. Barco 8100/ Sanyo Video Projector x 2 w/ 10' (L) x 14' (W) Video Screen x 2 (Manpower And Transportation) $ 5,800.00 U.S Dollars

(B) Fireworks:

1. 100 Feet Diameter of Water Fall Style (Once) 100 呎煙花瀑布效果 ( 1 次 ) $ 4,400.00 U.S Dollars

(C) Special Effects: ( 舞台特別效果 )

1. Confetti Gun x 8
噴紙機( 彩紙 ) (2 次 )
2. Co2 Machine x 8
噴氣筒( 白色二氧化碳 )(多次)
3. Dry Ice Machine x 2
乾冰機連乾冰 100 磅 (10 分鐘 )
4. Paper Roller x 8
碎紙機 ( 多次)
5. Snow Machine x 4
雪機 (發泡膠粒)(多次)
6. Bubble Machine x 2
泡泡機 (多次)
Total $ 5,000.00 U.S Dollars

(D) Stage w/ Backdrop: (舞台背板)

Lighting Rig Shade Cover 天幕 (100'x 30' ) $2,500.00 U.S Dollars 2. Backdrop ( 100'W x 20'H ) 白色背板 $3,000.00 U.S Dollars
